Profilometer
smartWLI Nimbus8
high-speed, extreme resolution sensor

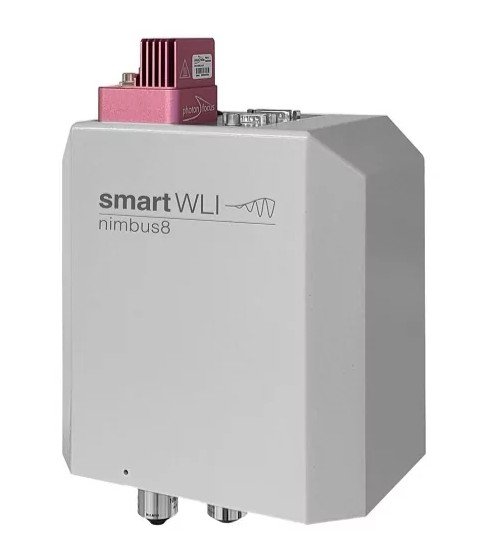

SmartWLI nimbus8
Description:
Equipped with a nosepiece and a high-resolution, fast 10-GigE camera, the sensor offers outstanding perfor-mance for universal measuring stations and optical 3D profilometers used in research facilities for demanding measurement tasks.
Key Features:
- High-speed and resolution camera: 3488 x 2192 pixel / 160 fps 10GigE camera / optional decimation, binning and AOI
- Optical 3D sensor: high performance sensor with motorized objective turret for up to 4 objectives
- Scanning device: piezo positioning system / close loop capacity gauge control 200µm scanning range / 30nm linearity
- High speed measurements: real time image processing on advanced graphic boards
- Fast and effective noise reduction: Extreme small increments allows fast and effective noise reduction for single scans and can be combined with time consuming averaging processes using multiple scans
- Extreme lateral resolution: Unlimited evaluation from up to 8 MP measuring points without range and resolution limitation
- increased acceptance angles: image corrections and contrast enhancement allows the detection of weak signals and the measurement of steep geometries on shine objects
Specification:
- Scanner - 200 µm piezo positioner
- Objective - motorized turret up to 4 objectives
- Pixel - 3488 x 2192
- Speed - 160 fps full resolution
- Topography - 0.05 nm
- RMS - 0.005 nm
- Operation - Windows 10 / 11
- Hardware - Core I9, 64 GB RAM, 1 TB SSD, 16 TFLOP GPGPU
